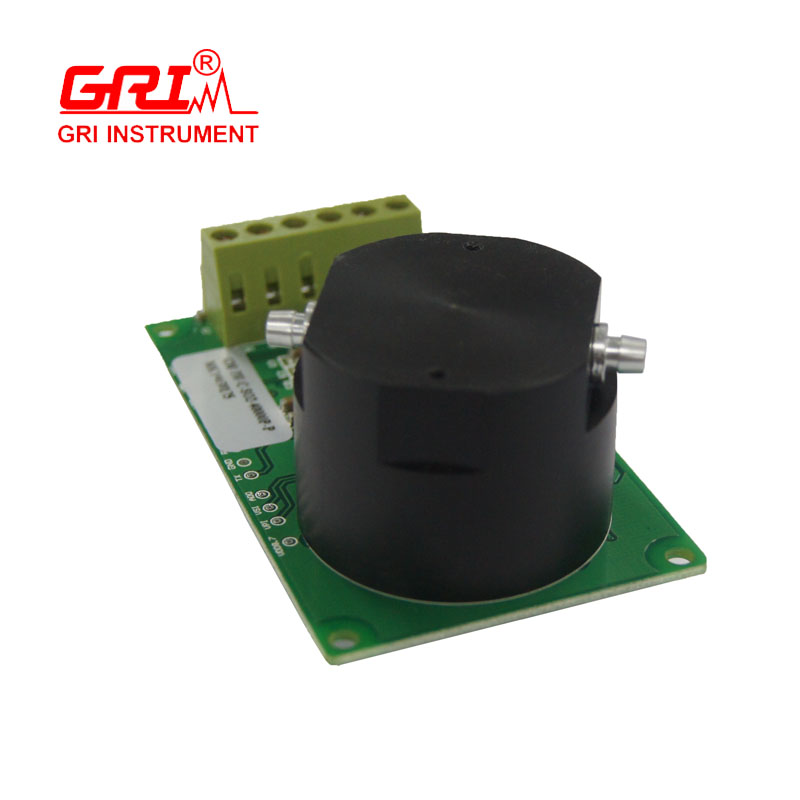

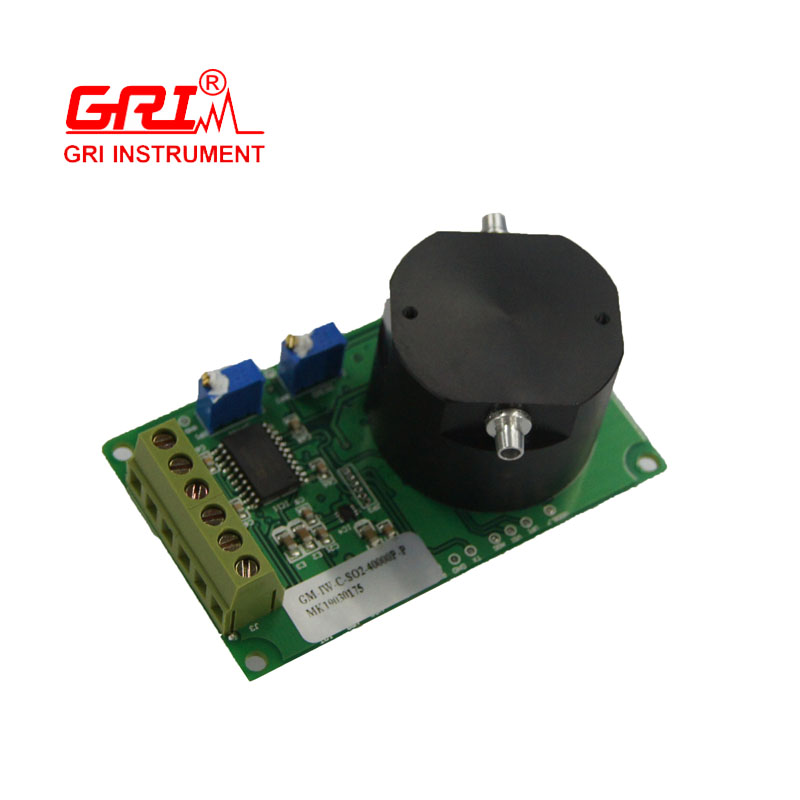

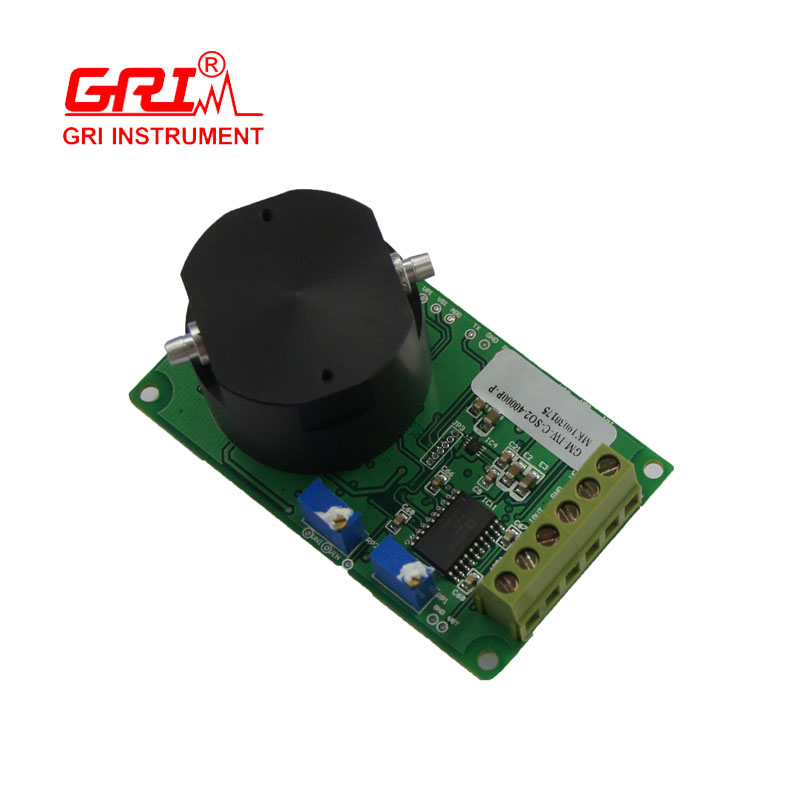

T series intelligent toxic gas sensor module is with high response speed, good repeatability and the narrow line error.Also GRI Instrument intelligent technology has the world's most advanced solutions.
The high-precision & low-temperature drift and multi-point calibration technology ensure the module measurement accuracy and linearity.The Module is designed with the digital output. It’s unnecessary to re-calibrate, if the user make the module for binary development or direct use, which will reduce the development and application time cycle. There are two application interfaces: Diffusion, pump-priming.
1）can accurately detect low or high concentration gases;
2）Adopted the best international amplifier and 24-bit ADC, with high precision, good resolution;
3）Adopted the best international power processing devices to protect the module measurement accuracy and strong anti-interference;
4）Used the multi-point calibration technology to protect the linearity on the high range;
5）Adopted to the high-precision low-temperature drift of the device
6）Two install types: Diffusion, pump-priming;
7）Small size, can be adapted to customer direct application or the second development;

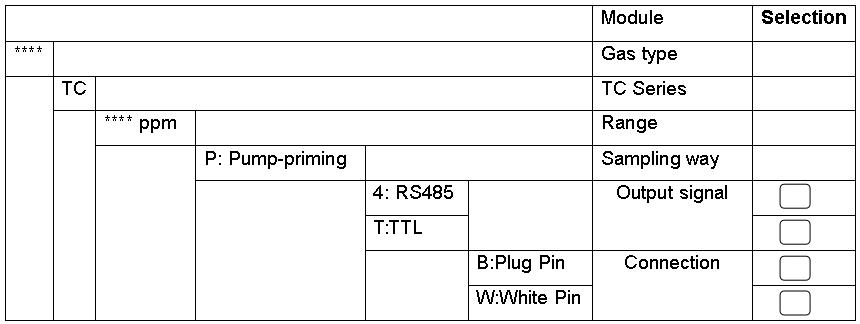

Sensor Module Selection：
